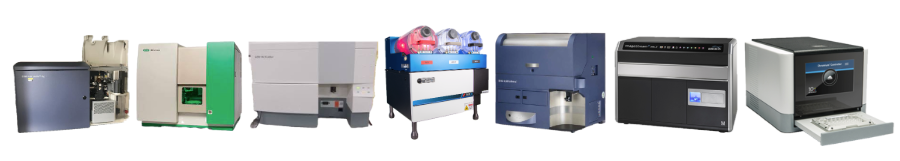

Our Instruments
Instruments available to our users are

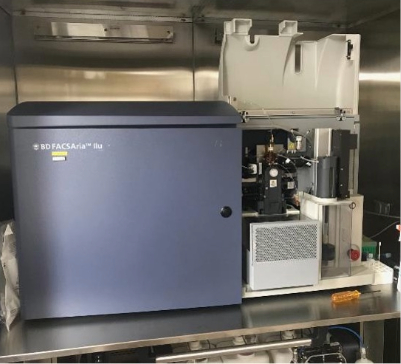

About the FACS Aria 2
- Enables purification of cell populations for downstream assays
- Enclosed in a biosafety cabinet for safe sorting ofBSL-2 materials
- Three lasers, up to nine channels
- Sorting into tubes or 96-well plates
- Operated by CAC personnel (Andy Sebrell)
|
Laser
|
Filters
|
Fluorochromes
|
|---|---|---|
|
488 nm
|
530 nm
|
FITC
|
|
576 nm
|
PE
|
|
|
616 nm |
PE-Tx Red
|
|
|
695 nm |
PerCP-Cy5.5, PI
|
|
|
780 nm
|
PE-Cy7
|
|
|
561 nm
|
582 nm
|
Tomato Red
|
|
633 nm
|
660 nm
|
APC
|
|
780 nm
|
APC Cy7
|

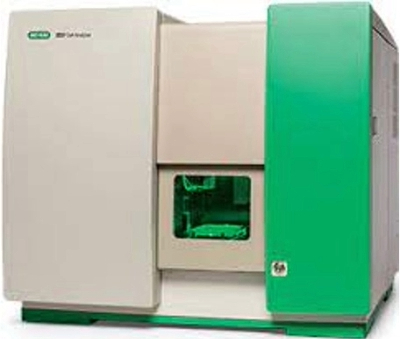

About the BioRad ZE5™
- 5 lasers, up to 30 parameters
- User-friendly plate and universal tube loader
- Small particle detector for bacteria, viruses, and exosomes
- Temperature control and orbital agitation
- Fast data collection – up to 100,000 cells/second
- Please acknowledge USDA 2023-70410-41180
|
5 Lasers (27 Colors)
|
||
|---|---|---|
|
Laser
|
Filter
|
Fluorochrome
|
|
355
|
387/11
|
BUV395
|
|
447/60
|
AF350, DAPI
|
|
|
525/50
|
BUV496
|
|
|
670/30
|
BUV611
|
|
|
700LP
|
BUV737
|
|
|
405
|
420/10
|
BV421
|
|
460/22
|
SBV440, Pacific Blue
|
|
|
525/50
|
SBV515, BV510, CFP
|
|
|
615/24
|
SBV610, BV605
|
|
|
670/60
|
SBV670, BV650
|
|
|
720/60
|
BV711
|
|
|
750LP
|
BV786
|
|
|
488
|
488/10
|
SSC
|
|
525/35
|
FITC, GFP, YFP, AF488, BB515
|
|
|
593/52
|
PE, PE-CF594,
|
|
|
692/80
|
SBB700, PerCp-Cy5.5, PE-Cy5
|
|
|
750LP
|
BB790, PE-AF750, PE-Cy7
|
|
|
561
|
577/15
|
PE
|
|
589/15
|
DsRed, td Tomato
|
|
|
615/24
|
PE-Dazzle, PE-CF594, mCherry
|
|
|
640/20
|
mPlum
|
|
|
670/30
|
PE-Cy5, PE-AF647
|
|
|
720/60
|
PE-Cy5.5
|
|
|
750LP
|
PE-Cy7, PE-AF750
|
|
|
640
|
670/30
|
APC, AF647
|
|
720/60
|
AF700
|
|
|
775/50
|
APC-Cy7, AF750
|
|
|
800LP
|
AF790, APC/Fire810
|
|

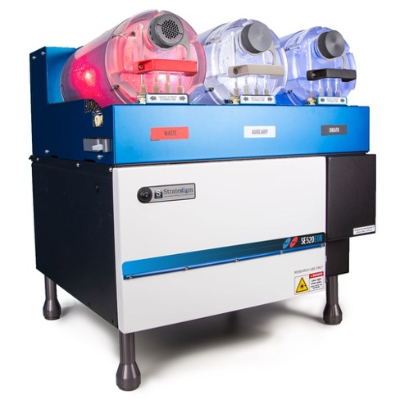

About the Stratedigm SE520EON
- Located in Cooley Lab
- Two lasers, up to six colors and eight parameters (incl. FSC/SSC)
- Acquired with support from INBRE (P20GM103474)
| Laser | Filers | Fluorochromes |
|---|---|---|
| 448 nm | 530 nm | FITC |
| 580 nm | PE | |
| 676 nm | perCP / PE-Cy5 | |
| 780 nm | PE-Cy7 | |
| 640 nm | 676 nm | APC |
| 780 nm | APC Cy7 |

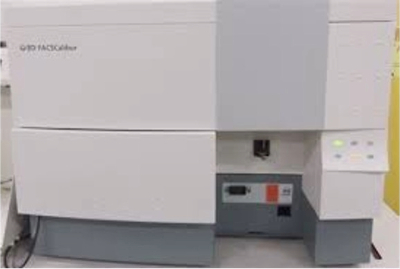

About the FACS Calibur
- Located in Cooley Lab
- Older instrument
- Two lasers, six parameters
|
Laser
|
Filters
|
Fluorochromes
|
|---|---|---|
|
488 nm
|
530 nm
|
FITC, GFP, AF488
|
|
585 nm
|
PE, PI
|
|
|
670 nm
|
7-AAD, PerCP, PerCP-Cy5.5, PE-Cy5, PE-Cy7
|
|
|
635 nm
|
661 nm
|
APC, AF647
|

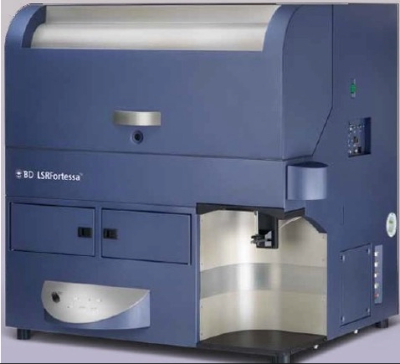

About the BD LSR Fortessa
- Located in Cooley Lab
- High-end BD cell analyzer
- 18 colors, 20 total parameters
- Available for self-service to trained users
- Diva software
|
Laser
|
Filters
|
Fluorochromes
|
|---|---|---|
|
355 nm (UV laser) |
450 nm
|
DAPI
|
|
535 nm
|
Indo-1
|
|
|
405 nm
|
450 nm
|
BV421, Pacific Blue, DAPI
|
|
535 nm
|
BV510, V500, Pac. Orange
|
|
|
610 nm
|
QDot605
|
|
|
670 nm
|
BV650, Qdot 655
|
|
|
710 nm
|
BV711, Qdot 705
|
|
|
488 nm
|
530 nm
|
FITC, Alexa Fluor 488,
|
|
695 nm
|
PerCP-Cy5.5
|
|
|
561 nm
|
582 nm
|
PE
|
|
610 nm
|
PE-Tx Red
|
|
|
660 nm
|
PE-CY5
|
|
|
710 nm
|
PE-CY5.5
|
|
|
780 nm
|
PE-CY7
|
|
|
640 nm
|
670 nm
|
APC
|
|
780 nm
|
АРС СУ7
|
|
|
790 nm
|
AF700
|

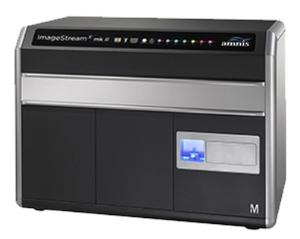

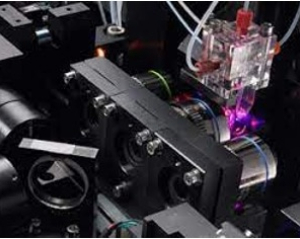

About the ImageStream Mark II
- High throughput analyses
- Equipped with 20x, 40x and 60x objectives
- Can perform image analysis on >10,000 events
- Records >100 cellular features
- IDEAS software has integrated machine learning algorithms
|
Channel |
Band
|
Excitation laser (nm)
|
||
|---|---|---|---|---|
|
488
|
642
|
785
|
||
|
1
|
435-505
|
|
|
|
|
2
|
505-560
|
FITC, AF488,GFP, YFP, Dylight488, PKH67, Syto13, LysoTrackerGreen, MitoTrackerGreen
|
|
|
|
3
|
560-595
|
PE, PKH26, DSRed, mOrange, Sytox Orange, Cy3
|
|
|
|
4
|
595-642
|
PE-TexRed, PI, RFP, QD625, eFluor625
|
|
|
|
5
|
642-745
|
PECy5, PEAF647, 7AAD, PerCP, PerCp-Cy5.5, DRAQ5, QD705
|
APC, AF647, AF660, AF680, APC, Cy5, Dylight649, PE-AF647, PE-Cy5, DRAQ5, PerCP, PerCP-Cy5.5
|
|
|
6
|
745-780
|
PE-Cy7, PE-AF750, QD800
|
APC-Cy7, APC-AF750, APC-H7, Cy7, AF750, PE-Cy7, PE-AF750
|
SSC
|

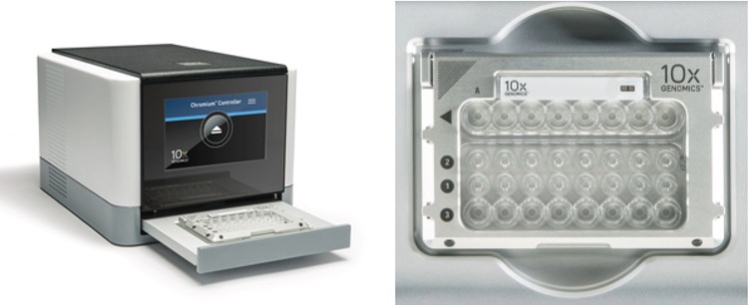

About the 10x Genomics ChromiumX

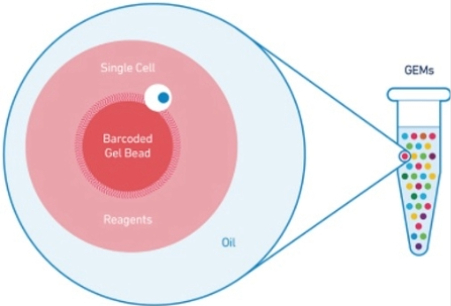

- Microfluidic system
- Processes cell suspensions for single cell sequencing
- The mRNA of each cell is tagged with a cell-specific nucleic acid barcode
- Users then generate cDNA and sequencing libraries
- Sequencing enables analysis of each individual cell’s complete transcriptome
